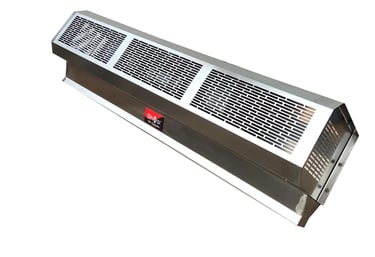

MODEL SAC-028

Air Curtain 3 feet to 8 feet

Sharp Regular Air Curtain

Features

• Maintains a smooth flow of air in restaurants, hotels, hospitals, shops, and homes
• Creates a barrier of air to keep out unwanted elements and maintain a comfortable indoor environment
• Versatile usage for ensuring a pleasant and controlled atmosphere in different settings
• Keeps restaurants or shops comfortable for customers and maintains a clean, healthy environment
• Width size: 2 feet to 8 feet, customizable

Dimensions: According to door X 260mm x 300mm

Effective height: 10 feet

Maximum Air velocity at nozzle: 22-26

Noise level: 65-70 DB

Power supply: 230V, 50Hz

No. of Motors: 1 (3’ to 4’), 2 (5’ to 7’)

Motor RPM: 2800

Motor HP: 0.75 hp

Phase: Single / Three

MOC Blower & Size: Aluminium, 6” Dia

Material of Body: Mild Steel / Stainless Steel

Finish: Powder Coated / Steel Mate

Warranty: 1 Year

Magnetic or Human Sensor: Available if required
